| Engine Specifications | |
|---|---|
| Engine Brand | PERKINS |
| Engine Model | 1206A-E70TTAG3 |
| Standby Power (Kw/hp) | 248,5/333,2 |
| Engine Speed (r.p.m) | 1500 |
| Total Displacement (L) | 7,01 |
| Cylinder Arrangement | 6-L |
| Bore x Stroke (mm x mm) | 105 x 135 |
| Compretion Ratio | 15.8:1 |
| Governor Type | Electronic |
| Aspiration System | Series turbocharged aftercooled |
| Injection | #YOK |
| Cooling System | Water Cooled |
| Electrical System (VDC) | 12 |
| Oil Capacity (L) | 13-16 |
| Coolant Capacity (L) | 25 |
| Fuel Tank Capacity (L) | 500 |
| Maximum Exhaust Gas Temperature (°C) | 522 |
| Maximum Exhaust Gas Flow (m3/h) | 2047 |
| Maximum Back Pressure (kPa) | 7 |
| Cooling Air Flow (m3/min) | 265,2 |
| Fuel Consumption at 50 % (L/h) | 28,1 |
| Fuel Consumption at 75 % (L/h) | 41,5 |
| Fuel Consumption at 100 % (L/h) | 56,9 |
| Cylinder Liner Type | Wet Type-Replacable |
| Air Filter Type | Dry Type-Replacable |
| Radiator | Tropical type up to 50 °C |
| Open Type Width (mm) | 1300 |
| Open Type Length (mm) | 2700 |
| Open Type Height (mm) | 1898 |
| Open Type Weight (Kg) | 2170 |
| Open Type Fuel Tank Capacity (L) | 500 |
| Alternator Specifications | |
|---|---|
| Alternator Brand | WEG |
| Alternator Model | 250SI20AI |
| Frequency (Hz) | 50 |
| Nominal Power (kVA) | 250 |
| Nominal Voltage (V) | 400 |
| Phase | 3 |
| Regulated By | AVR |
| Voltage Regulation | ± 0,5% |
| Short Circuit Current | 250% In |
| Insulation | Class H |
| IP Class | IP 23 |
| Power Factor | 0.8 |
| Efficiency (%) | 92 |
| THD | <3% |
| Connection Type | Star connection |
| Number of Wires | 12 |
| Poles | 4 pole |
| Bearing Type | Single Bearing |

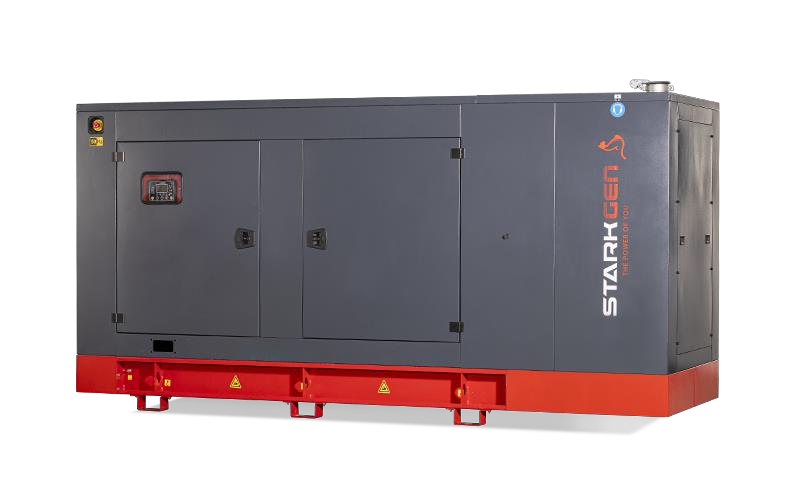

| Canopy Type Width (mm) | 1300 |
| Canopy Type Length (mm) | 4000 |
| Canopy Type Height (mm) | 2150 |
| Canopy Type Weight (Kg) | 2600 |
| Canopy Type Fuel Tank Capacity (L) | 500 |
