| Engine Specifications | |
|---|---|
| Engine Brand | PERKINS |
| Engine Model | 2806A-E18TTAG4 |
| Standby Power (Kw/hp) | 685/919 |
| Engine Speed (r.p.m) | 1500 |
| Total Displacement (L) | 18,1 |
| Cylinder Arrangement | 6-L |
| Bore x Stroke (mm x mm) | 145 x 183 |
| Compretion Ratio | 14:01 |
| Governor Type | Electronic |
| Aspiration System | Turbocharged AAC |
| Injection | Direct |
| Cooling System | Water Cooled |
| Electrical System (VDC) | 24 |
| Oil Capacity (L) | 68 |
| Coolant Capacity (L) | 110 |
| Fuel Tank Capacity (L) | 1200 |
| Maximum Exhaust Gas Temperature (°C) | 465 |
| Maximum Exhaust Gas Flow (m3/h) | 7680 |
| Maximum Back Pressure (kPa) | 10 |
| Cooling Air Flow (m3/min) | 852 |
| Fuel Consumption at 50 % (L/h) | 75 |
| Fuel Consumption at 75 % (L/h) | 109 |
| Fuel Consumption at 100 % (L/h) | 147 |
| Cylinder Liner Type | Wet Type-Replacable |
| Air Filter Type | Dry Type-Replacable |
| Radiator | Tropical type up to 50 °C |
| Open Type Width (mm) | 1900 |
| Open Type Length (mm) | 3600 |
| Open Type Height (mm) | 2253 |
| Open Type Weight (Kg) | 5020 |
| Open Type Fuel Tank Capacity (L) | 1200 |
| Alternator Specifications | |
|---|---|
| Alternator Brand | Leroy Somer |
| Alternator Model | TAL049 B |
| Frequency (Hz) | 50 |
| Nominal Power (kVA) | 730 |
| Nominal Voltage (V) | 400 |
| Phase | 3 |
| Regulated By | AVR |
| Voltage Regulation | ± 0.8 % |
| Short Circuit Current | 100% In |
| Insulation | Class H |
| IP Class | IP 23 |
| Power Factor | 0.8 |
| Efficiency (%) | 93.6 |
| THD | < 3.5 % |
| Connection Type | Star connection |
| Number of Wires | 6 |
| Poles | 4 pole |
| Bearing Type | Single Bearing |

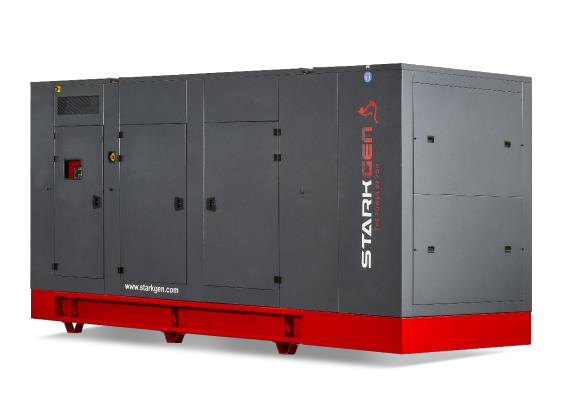

| Canopy Type Width (mm) | 1900 |
| Canopy Type Length (mm) | 5200 |
| Canopy Type Height (mm) | 3110 |
| Canopy Type Weight (Kg) | 7950 |
| Canopy Type Fuel Tank Capacity (L) | 1200 |
